Tandem Drawer System
Key Features
Smooth running action with quiet, feather-light glide due to low-friction cylindrical nylon rollers. Integrated BLUMOTION soft-close mechanism for soft and effortless closing. Excellent stability with superior sag values even when fully laden, allowing for wide, high, and deep pull-outs including those near the floor. Four-dimensional adjustment for precise positioning. Locking devices allow easy drawer insertion/removal with height and side-to-side adjustment. Compatible with ORGA-LINE adjustable organization system featuring stainless steel trays and dividers.
Technical Specs
Concealed runner system for wooden drawers. Maximum load capacity: 30 kg. Nominal lengths: 250mm to 650mm. For American market: drawer lengths from 9 inches to 21 inches based on 3-inch cabinet depth system. Available extensions: full or single extension. TANDEM plus BLUMOTION 563 series: static capacity 100 lb, dynamic capacity 90 lb. Four-dimensional adjustment: tool-free height adjustment (up to 3mm or 1/8 inch), front tilt adjustment, rear side-to-side adjustment (up to 1.5mm or 1/16 inch), depth adjustment (±4.5mm or 3/16 inch). Panel thickness compatibility: 17-19mm (H and . series for up to 5/8 inch side material, F series for up to 3/4 inch side material).
Materials & Finishes
Zinc-coated components. Low-friction cylindrical nylon rollers for weight distribution and prevention of metal wear. Locking devices in orange nylon/zinc. Front adjuster in natural nylon. POSISTOP depth stop in RAL 7037 dust grey nylon. Durable construction meeting or exceeding ANSI/BHMA A156.9 Grade 1 requirements.
Installation
Easy insertion and removal of drawers using locking devices with integrated lift-off stop. Tool-free height adjustment available. Four-dimensional adjustment capabilities. Rear mounting options: brackets or nylon sockets for face frame cabinet installations. Assembly aids available including Concealed Runner Template for precise pre-boring of screw holes. Compatible with EASY ASSEMBLY App for step-by-step instructions and videos.
Applications

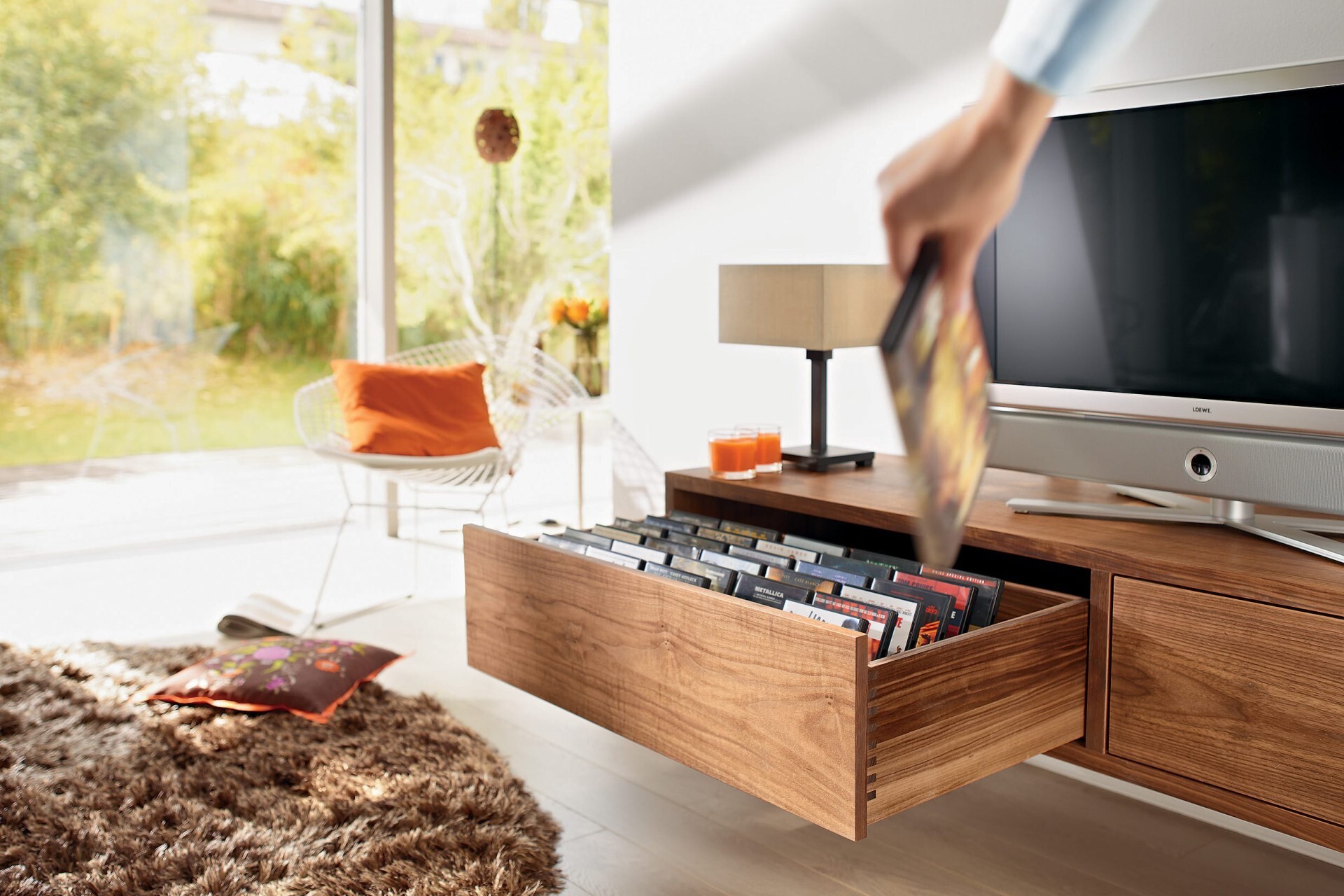

Designed for wooden drawer applications in various living areas. Hallway furniture: provides space for large items in high, wide pull-outs. Bathroom furniture: wide drawers with short nominal lengths using optional side stabilization; zinc plated runners and nylon roller carriages offer protection against corrosion. Living area furniture: wide pull-outs, lowboards, pull-out shelves with optional side stabilization for wide pull-outs with short nominal lengths. Kitchen and dining applications for various drawer sizes. Suitable for drawers near the floor as well as extra wide, high, and deep pull-outs.
Catalog Reference
Page 442
