MOVENTO Drawer System
Key Features

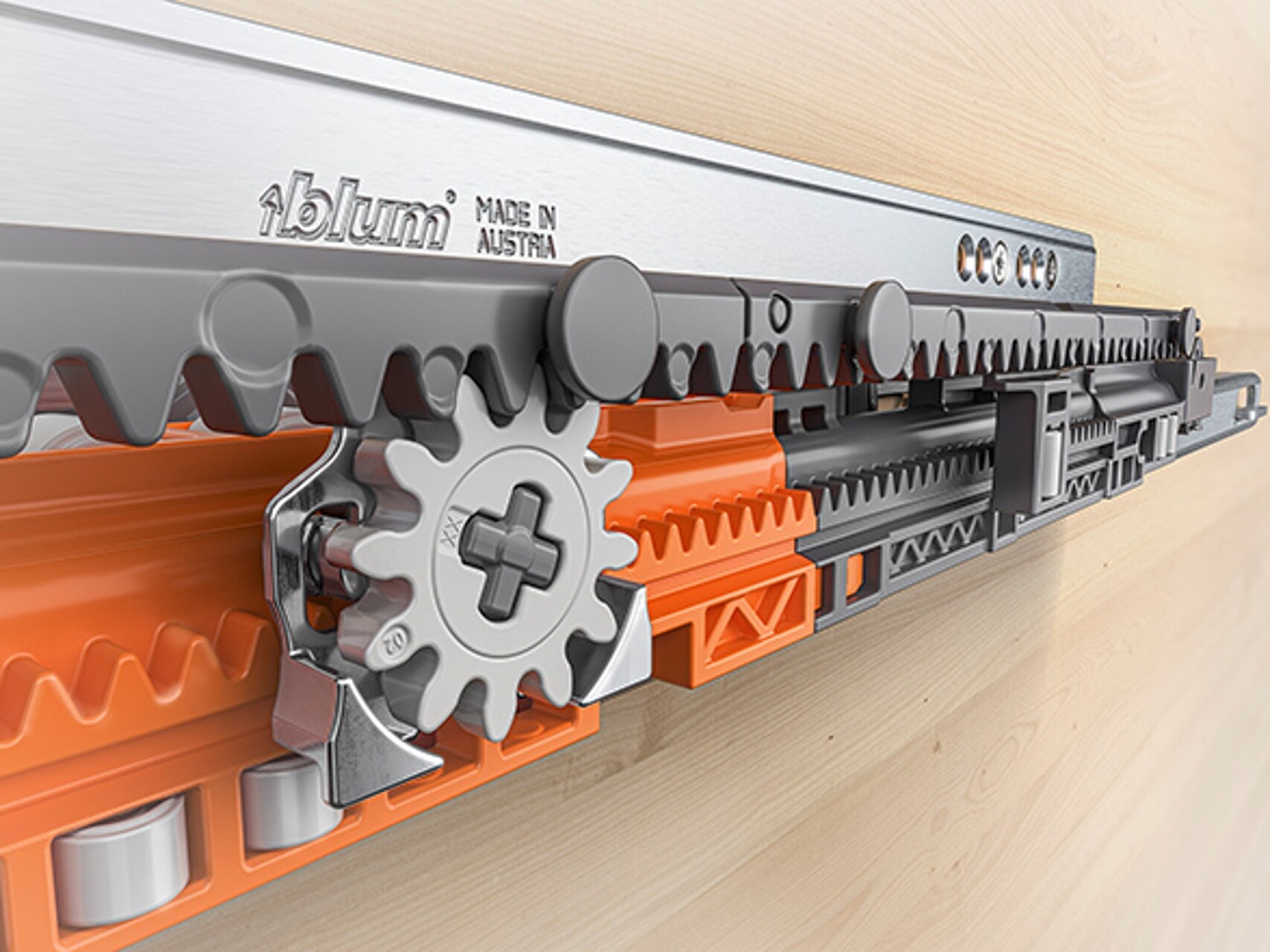

Synchronized feather-light glide ensures ultra-smooth, silent running action. Runner components transition immediately to feather-light glide when drawer is opened. Four-dimensional adjustment provides precise gap layout. High stability and load bearing capacity with excellent sag values, ideal for applications near the floor. Compatible with all motion technologies: BLUMOTION (soft close), TIP-ON BLUMOTION (touch-to-open with soft close), SERVO-DRIVE (electrical opening support). BLUMOTION S runner option provides flexibility to implement three different motion technologies with a single runner. Full extension with superior stability.
Technical Specs
Concealed full extension runner system with synchronized feather-light glide. Load capacities: MOVENTO 763 Standard Duty Series (125 lb static load), MOVENTO 769R Heavy Duty Series (135 lb static load), MOVENTO 769. Heavy Duty Series (170 lb static load). Dynamic carrying capacities: 40 kg and 70 kg. Four-dimensional adjustment: tool-free height adjustment (up to 3mm/1/8 inch rise of drawer front), tool-free rear side-to-side adjustment (max 1.5mm/1/16 inch), tool-free tilt adjustment (max 5mm/3/16 inch rise of drawer back), elongated holes for depth adjustment (±4.5mm/3/16 inch). Drawer material thickness compatibility: 1/2 inch to 5/8 inch (13mm to 16mm). Cabinet system: American 3 inch increment cabinet depth. Available nominal lengths: 305mm (12 inch), 381mm (15 inch), 457mm (18 inch), 533mm (21 inch) for standard duty series.
Materials & Finishes
Zinc-coated steel construction. Concealed roller carriages with permanently lubricated synthetic rollers for optimal weight distribution. Locking devices: stamped steel base with synthetic, spring-loaded release levers. Durable construction meeting or exceeding ANSI/BHMA standards.
Installation
Easy assembly with locking devices featuring captive right device and self-aligning left device. Self-adjusting drawer length tolerance. Tool-free front side-to-side adjustment (±1.5mm/1/16 inch). Narrow locking devices (T51.0501.20) available without front adjustment. Rear mounting brackets available for face frame cabinets (e.g., part no. 295.3750.02) with depth and lateral self-alignment (not for TIP-ON BLUMOTION). Assembly aids: 65.5632.US front gap template (highly recommended for TIP-ON BLUMOTION), T65.1600.01 Concealed runner template for boring and rear notching. Lateral stabilizer available for wide applications. Drawer preparation: inside drawer width = opening width minus 42mm (1-21/32 inch); Ø6mm holes bored 10mm (13/32 inch) deep on each side of drawer back; notching required in drawer back flush with sides and bottom.
Applications
Kitchen applications: ideal for wide and high pull-outs with heavy items such as pots and pans due to stability and load bearing capacity. Living room applications: versatile for all kinds of drawers from lowboards for TV to sideboards next to dining table, accommodating wide or narrow, high or low configurations. Dining room applications: very large and spacious pull-outs providing ample storage space, including under-bench applications. Suitable for applications near the floor. Compatible with frameless or blocked-out face frame cabinets. Works with ORGA-LINE practical inner dividing system for organization.
Catalog Reference
Pages 410, 412, 416, 474
