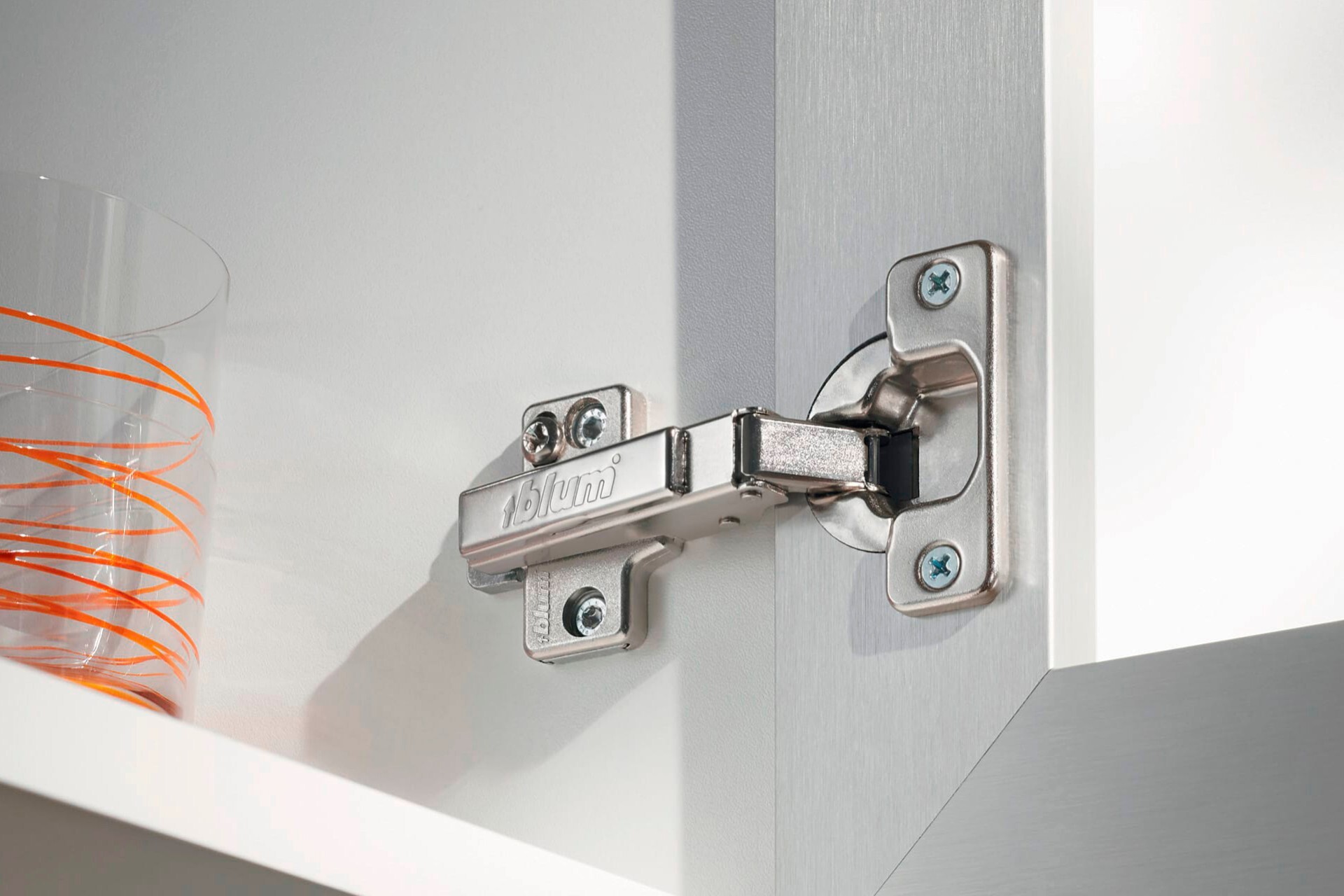

MODUL Hinges
Key Features
Efficient hinge system design. Slide-on hinge arm for simplified installation. Closing mechanism (spring) integrated. 3-dimensional front adjustment for precise door positioning. Specialized design for refrigerator facade doors with shallow hinge arm height accommodating thicker fronts. Compatible with standard MODUL mounting plates and accessories.
Technical Specs
100° opening angle standard. Hinges with closing mechanism (spring). Slide-on hinge arm. 3-dimensional front adjustment. Specialized variant for refrigerator facade doors features: 95° opening angle, shallow hinge arm height, compatibility with front thicknesses up to 30mm, easy 3-dimensional front adjustment. Combined with mounting plate 194K6100E for refrigerator applications.
Materials & Finishes
Available in nickel-plated or orange finishes. Refrigerator door hinges available in nickel-plated or Onyx black. Metal construction for durability.
Installation
Slide-on hinge arm design for easy installation. 3-dimensional adjustment capabilities for precise alignment. Specifically designed for refrigerator facade doors to be combined with mounting plate 194K6100E. Chipboard screws available: lengths of 15.0mm and 17.0mm, both with 3.5mm diameter. Various center bits available for installation.
Applications
General cabinet applications with 100° opening angle requirement. Specialized application for refrigerator facade doors where shallow hinge arm height is needed and front thicknesses up to 30mm are used. Suitable for various cabinet types requiring the MODUL hinge system's efficient design and slide-on functionality.
Catalog Reference
Pages 162, 164, 168
