MERIVOBOX Drawer System
Key Features
Robust stability achieved through innovative L-shape cabinet profile. Synchronized feather-light glide ensures smooth operation even when fully loaded. High front stability enables modern kitchen designs with high fronts combined with low drawer sides. Compatible with multiple motion technologies: BLUMOTION (soft and effortless closing), SERVO-DRIVE (electrical touch-to-open for handleless fronts), TIP-ON (mechanical opening support for handleless fronts), TIP-ON BLUMOTION (combines mechanical opening with soft-close). Motion technologies can be retrofitted. Compatible with AMBIA-LINE organization system featuring elegant frames, flexible cross galleries, and lateral dividers for customized storage.
Technical Specs
Drawer heights: M height (91mm), E height (192mm). Slim drawer side design with distinctive design line. Nominal lengths: 270-600mm for 125 lb capacity, 450-600mm for 170 lb capacity. Static load ratings: 125 lbs (270-600mm nominal lengths), 170 lbs (450-600mm nominal lengths) per ANSI/BHMA A156.9 Testing Standards. Innovative L-shape cabinet profile provides robust stability. Synchronized feather-light glide even when fully loaded. High front stability. Four-dimensional adjustment capabilities. Straight interior for maximum storage space.
Materials & Finishes
Available colors: matte silk white and indium grey (matte finish). Drawer sides feature slim design line creating appealing light reflections. Durable construction with consistent platform concept - cabinet profile, front, and front fixing brackets are same across all applications. Quality construction meeting ANSI/BHMA testing standards.
Installation
Designed for easy assembly with consistent platform concept simplifying manufacturing and assembly. Adjustments clearly labeled and easily accessible. Compatible with EASY ASSEMBLY App for step-by-step instructions. Designed for frameless cabinet interiors but can be installed in face frame applications by packing out cabinet sides. Side stabilizers available for wide drawer applications to ensure smooth runner engagement and prevent racking. Motion technologies can be retrofitted.
Applications

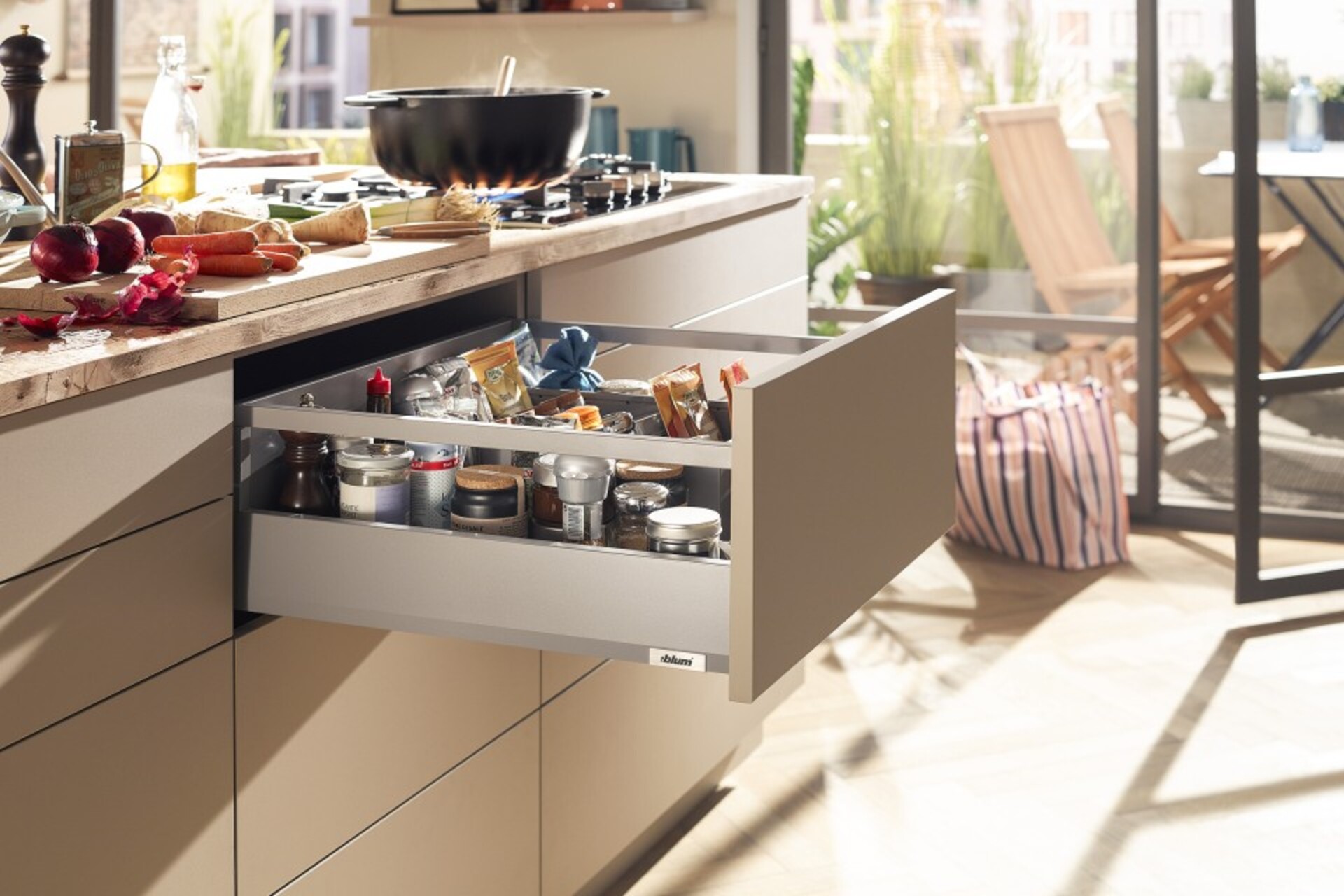

Drawer and high-fronted drawer applications. Interior roll-out applications. Available in two colors (matte silk white and indium grey) to suit every taste and create stunning designs. Suitable for kitchen cabinets with various load-bearing requirements (125 lbs to 170 lbs). Compatible with functional cabinet solutions: SPACE TOWER (ultimate pantry unit for easy all-around access) and SPACE TWIN (efficient use of storage space). Works with AMBIA-LINE organization options for utensils and drawer organization. Side stabilizer rods recommended for wide drawer applications.
Catalog Reference
Pages 250, 262, 266
