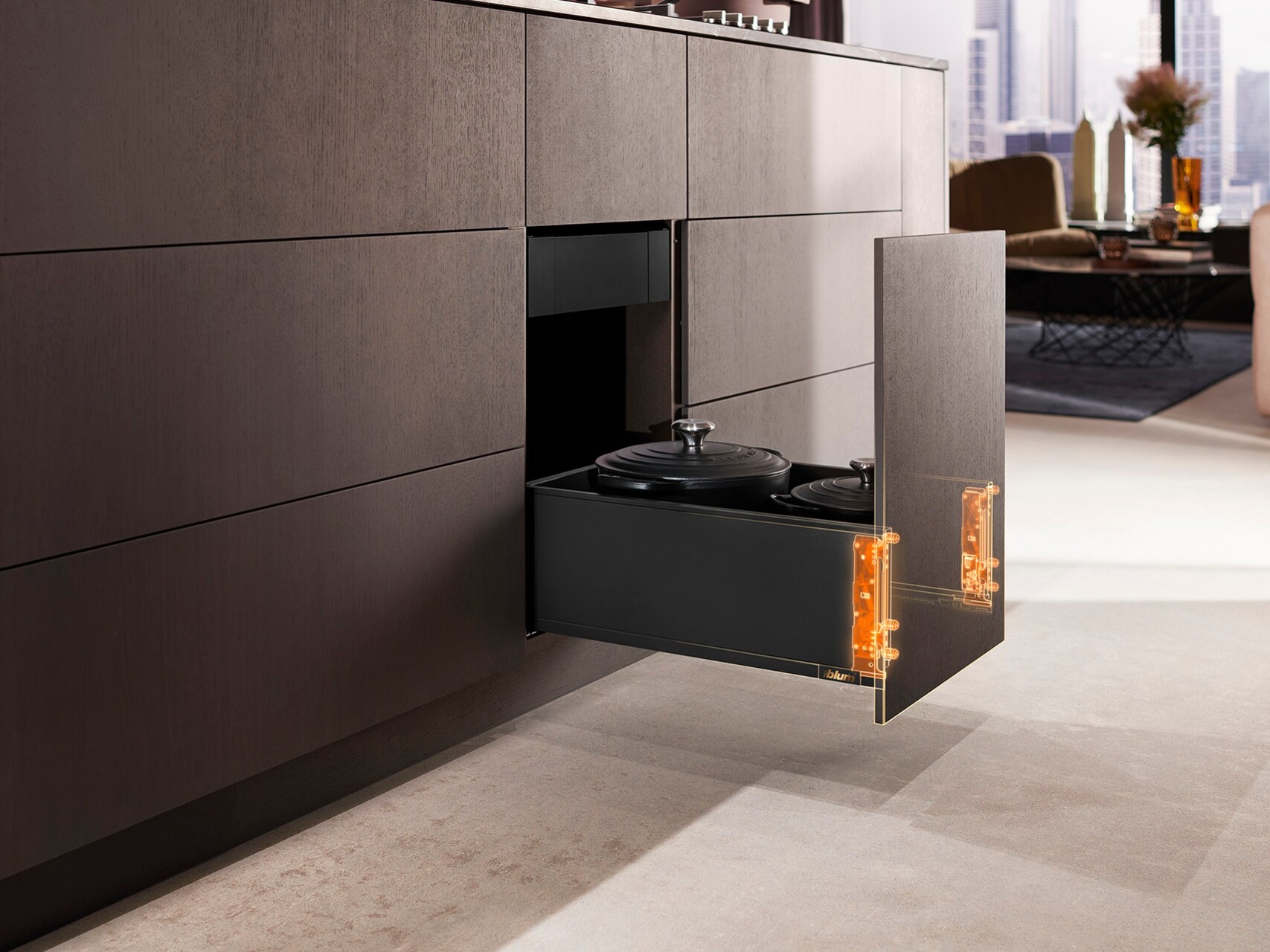

LEGRABOX (myLEGRABOX) - Black/Carbon Edition
Key Features
Premium box system for exacting design requirements. LEGRABOX special edition features tone-in-tone effects or striking contrasts with various decorative elements. Ultimate customization through LEGRABOX individual with color and material mixing. Design Selector tool available to configure and save designs as PDF or transfer to Product Configurator. Slim drawer sides (12.8mm) integrate harmoniously into any furniture design. Harmonious transitions - all components perfectly coordinated for seamless internal and external transitions. BLUMOTION S cabinet profile provides low opening forces, synchronized feather-light glide, supports three motion technologies, and soft-close function adapts to selected motion system. Award-winning design internationally acclaimed. Power-integrated furniture option with AMPEROS AC. Straight interior and exterior components.
Technical Specs
Slim drawer sides: 12.8mm thickness with straight profile. Synchronized feather-light glide. Integrated switchable BLUMOTION S soft-close technology. Full load bearing capacity: handles up to 70 kg with low sag values. Available drawer side heights and nominal lengths: 270, 300, 350, 400, 450, 500, 550, 600, and 650mm. Four-dimensional adjustment capabilities. Low opening forces. Supports three different motion technologies with single runner configuration.
Materials & Finishes
LEGRABOX special edition colors: Carbon black matt (primary focus for black edition), 3D carbon look, Noble rust textured finish. Additional standard colors available: Silk white matt (SW-M), Orion grey matt (OG-M), Stainless steel anti-fingerprint (INGL). Premium look in anti-fingerprint stainless steel. Customizable with material mixes. LEGRABOX individual allows printing, laser texturing, and embossing for unique furniture solutions. Customized branding available - print or laser engrave brand name/logo onto drawer sides.
Installation
Easy assembly - decorative elements and drawer sides can be ordered separately and assembled on-site by clicking together. Installation instructions available for LEGRABOX free and LEGRABOX pure including final assembly details. Compatible with EASY ASSEMBLY App. Special front-fixing brackets ensure maximum stability for high front panel designs. Uses BLUMOTION S cabinet profile for enhanced functionality. Can integrate AMPEROS AC power outlets for charging devices (supports retrofitting).
Applications
Box system for the most exacting design requirements in modern furniture and kitchens. Ideal for personalized metal drawers and pull-outs creating unique myLEGRABOX designs. Suitable for wide and heavy pull-outs due to full load bearing capacity (up to 70 kg) and low sag values. High front panel designs supported by special front-fixing brackets. Space-saving living concepts enabled by slim drawer sides. Compatible with AMBIA-LINE inner dividing system for organization. Works with TIP-ON BLUMOTION for handleless front applications combining mechanical opening support with soft-close functionality. Premium applications requiring customized branding and unique design solutions.
Catalog Reference
Pages 196, 224, 236, 242 (special edition Carbon black)
