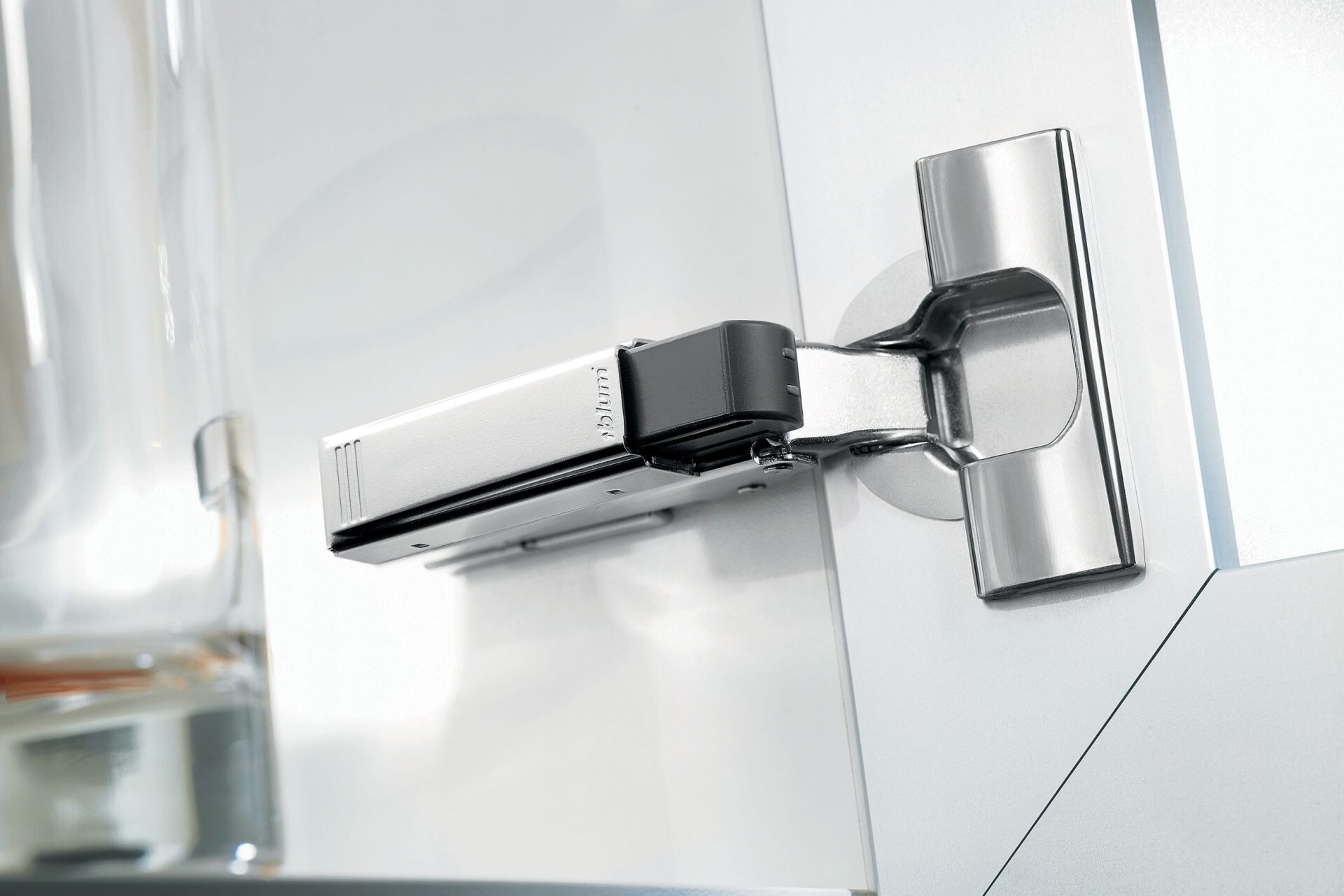

CLIP top Hinges (without BLUMOTION)
Key Features
Variable three-dimensional adjustment for precise alignment. Tool-free attachment to door available with INSERTA expanding dowels. Quick door attachment and removal without tools. Self-closing mechanism. Hinges available with or without spring (standard, strong, or TIP-ON springs). Angle restriction clips available to reduce opening angle (e.g., 130° clip for 170° hinges, 86° clip for 110° hinges). Compatible with CLIP mounting plates.
Technical Specs
Opening angles: 107°, 110°, 120°, 155°, 170°. Cup diameter: 35mm. Standard boring depth for hinge cup. Three-dimensional adjustment: side (±2mm), height (±2mm via cam screw on mounting plate), depth (+3mm, -2mm via spiral tech cam screw). Door thickness compatibility varies by application. Hinge spacing: 1.5mm to 7mm boring distance.
Materials & Finishes
Metal construction, typically nickel-plated steel. Nickel-plated finish standard. Designed for 200,000 opening and closing cycles without load, 100,000 cycles with 11 lb extra weight. Meets or exceeds ANSI/BHMA A156.9-2001 Grade 2 requirements.
Installation
Multiple attachment methods: Screw-on, Press-in (requires knock-in tool or MINIPRESS with universal insertion ram using pre-attached Ø8 dowels), EXPANDO, INSERTA (tool-free with expanding dowels). Tool-free door attachment and removal. Cam adjustment available for time-saving installation. Wide variety of mounting plates (inline, wing, face frame adapter) for frameless and face frame cabinets. Mounting plates ensure firm connection with three-point contact.
Applications
Versatile for almost any hinge application: standard applications (107°, 110°, 120°, 170° opening angles), wide angled applications for large opening angles and pantry applications (155° wide-angled hinge), thick door applications, blind corner applications (inset or overlay), aluminum frame applications, small frame applications, corner cabinets with bi-fold doors, angled applications (-45° to +45°), glass door applications. Suitable for full overlay, half overlay (partial/twin overlay), and inset applications. Can be used in both frameless and face frame cabinets.
Catalog Reference
Pages 76, 78, 82 (similar pages to BLUMOTION variants)
