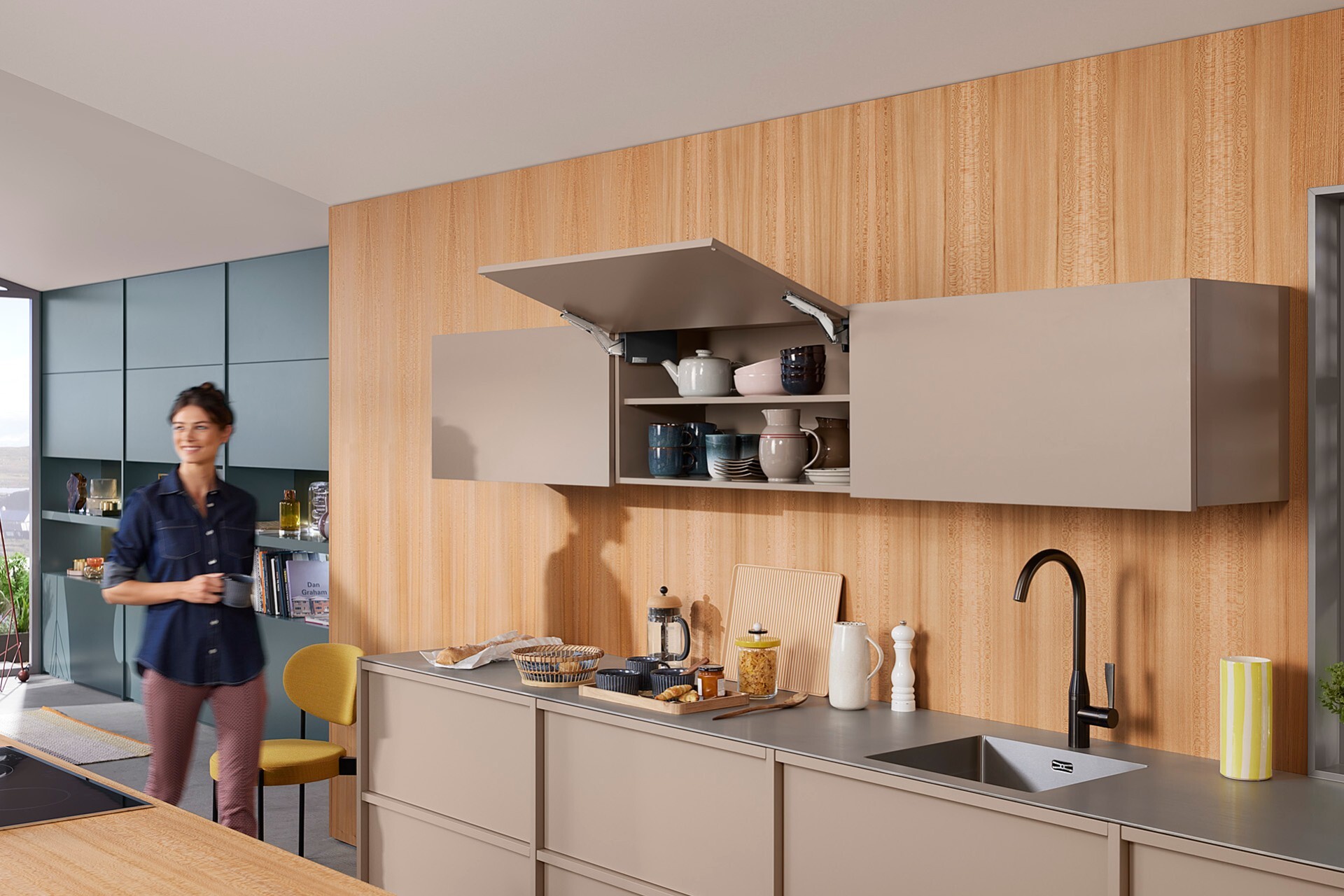

AVENTOS HK Top
Key Features
Versatile solution for both large and small wall cabinets. Compact design. Integrated features: safety mechanism, opening angle stop. Symmetrical lift mechanisms. BLUMOTION soft-close standard in all AVENTOS hardware. Compatible with motion technologies: TIP-ON (mechanical opening system for handleless fronts), SERVO-DRIVE (electrical touch-to-open system). Can be used with wood fronts, aluminum frames, and thin fronts (8mm or more with EXPANDO T). Lift mechanisms are symmetrical with integrated positioning template for easier installation.
Technical Specs
Cabinet dimensions: height range 10 inches to 24 inches, width range up to 72 inches. Compact design. Integrated opening angle stop. Variable opening angles with adjustment capability. Symmetrical lift mechanisms. Integrated positioning template eliminates need for measuring and pre-drilling. Integrated safety mechanism prevents unintentional opening of levers. Three-dimensional adjustment for perfect alignment.
Materials & Finishes
Metal construction with quality Blum engineering. Cover caps available in silk white, light gray, and dark gray. Durable hardware meeting Blum quality standards with rigorous testing.
Installation
Simple and precise installation with symmetrical lift mechanisms including integrated positioning template. Tool-free or minimal-tool assembly possible. Compatible with EASY ASSEMBLY App providing step-by-step instructions and videos for assembly and adjustment. Three-dimensional adjustment capabilities help achieve perfect alignment. Power setting can be adjusted with cordless screwdriver to match door weight.
Applications
Both small and large wall cabinets throughout the home. Cabinet height range of 10 inches to 24 inches and width up to 72 inches. Suitable for wooden doors and wide or narrow aluminum frames. Thin front applications (8mm or more) using EXPANDO T. Compatible with various front designs for versatile cabinet applications. Can be used with handleless fronts via TIP-ON or SERVO-DRIVE systems.
Catalog Reference
Various pages in lift systems section
