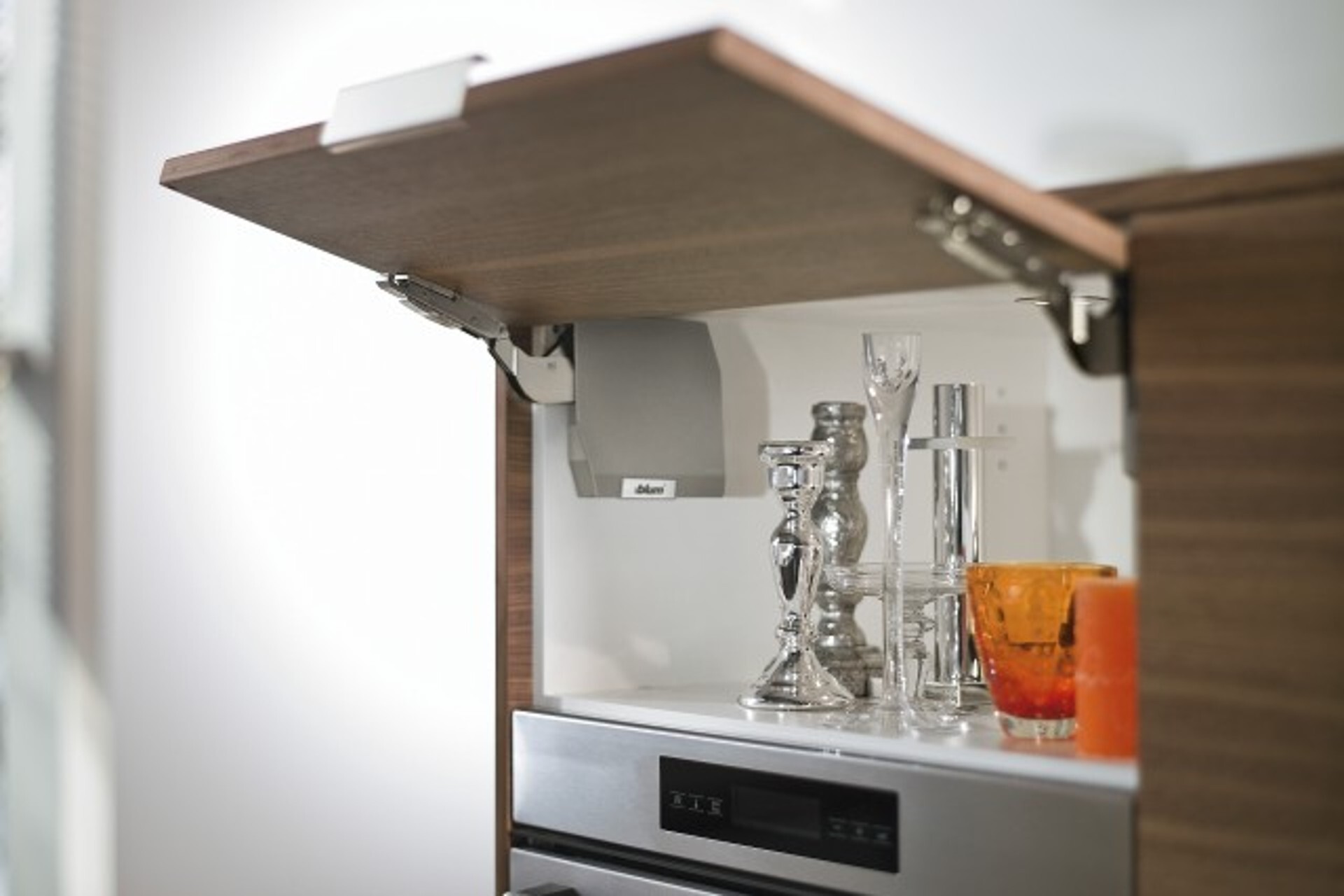

AVENTOS HK-S Stay Lift
Key Features
Specifically designed for small and light doors. Door remains in any desired position due to variable stop feature. Three mechanisms cover all cabinet sizes in range. BLUMOTION soft-close standard in all AVENTOS hardware. Compatible with TIP-ON mechanical opening system for handleless fronts. Can be used on one or both sides of cabinet. Ideal for smaller cabinets and built-in units. Angle restriction clips available (100 degrees and 75 degrees).
Technical Specs
Cabinet dimensions: height range 7-3/8 inches to 24 inches, width range up to 72 inches. Door opening angle: 107 degrees standard. Optional restriction clips for 100 degrees or 75 degrees opening angles. Three lift mechanisms cover entire range of cabinet heights and widths. Variable stop feature - door stays in any desired position. Power setting adjustable to match door weight.
Materials & Finishes
Quality metal construction. Durable Blum hardware meeting rigorous testing standards. Available hardware finishes per Blum specifications.
Installation
Three mechanisms cover entire range making hardware selection quick and easy. Power setting adjusted with cordless screwdriver to match door weight ensuring it holds reliably in any position. Three-dimensional adjustment for perfect alignment. Components virtually tool-free assembly. Compatible with EASY ASSEMBLY App.
Applications
Small wall cabinets. Above refrigerators and pantries. Built-in units above refrigerators. Smaller cabinet applications throughout the home. Cabinet height 7-3/8 inches to 24 inches, width up to 72 inches. Compatible with wooden doors and wide or narrow aluminum frames. Ideal for applications where door needs to hold position at any angle.
Catalog Reference
Various pages in lift systems section
